Special
function£º
¡ñ
No contact point thread
breaking detector, more
reliable.
¡ñ
Computer controlled adjustable
presser board lifting
mechanism, enable it to
quilt a broad range of
material thicknesses.
¡ñ
No needle rod design, more
durable, reliable and stable
¡ñ

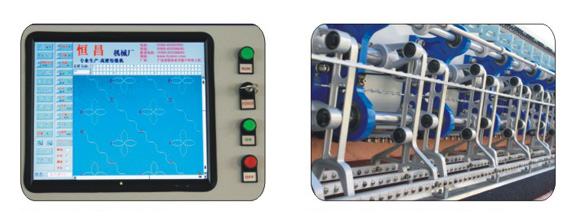

Self error probing system, detects
machine problems and displays
error messages onto the
computer screen
¡ñ
Brand new quilting machine
software control system, allows
more precise and stable
quilting operations
¡ñ
Machine is able to run
up to 1200 RPM using thinner
needle(140/22)
¡ñ
Computer controlled automatic
looper tracing system
¡ñ
Stable and reliable hook
transmission mechanism
¡ñ
Titled body design, easy
to operate and maintain
¡ñ
Able to quilt pattern in
pattern and multiple
pattern
designs
Applications and
specification:
Mattress panel, pads,
bedspreads, comforters,
bed and upholstery and so
on. |
| Function\Spec\Type
|
HC2500
(Multi-independent
patterns) |
| Size (length*width*height) |
5200X1500X2000(mm)
|
| Weight |
4000kg |
| Quilt
width |
2450mm |
| Rotation
speed |
600-1200RPM |
| Production
speed |
80-230m/h |
| Needle
type |
140/22
180/24 |
| Needle
arrangement |
(50.8,76.2,127)(76.2,76.2,152.4) |
| Max. horizontal
movement |
450mm |
| Needle
space |
25.4mm |
| Power
supply |
380V/220V
50Hz/60Hz |
| Stitch
size |
2-8mm |
| Power |
6KW |
| Quilting
thickness |
¡Ü80mm |
|
|
