HC-64",-94" High Speed Computerized Multi-needle Shuttle Quilting Machine
◆Multi-jump large pattern
◆Speed can be changed digitally
◆Function of automatic stop on breaking of thread (optional)
◆Needle raising (optional)
◆One unit fabric presser
◆Segmented pattern editing
◆Easy and quick pattern editing capability
◆Large quantity of selectable patterns ready for use
◆Use Panasonic servo motor (optional)
◆Machine speed can reach 450-550 rpm, stitch size of 2m-6mm
◆Automatic pattern adjustment that solves the problem of pattern distortion when quilting on thick material
◆Patented machinery design
　

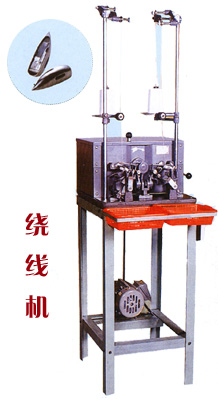

Bobbin Winder Applications:
Lace, Quilt and the Related Industries.
Specification:
Production Rate：6kgs/day 24 Hrs
    (Based on Ne60/2)
Power：0.2kw
Packing： wooden case
Measurement：86X64X43(cm)
Net Weigh：:62kgs
　

Multi-needle large pattern shuttle quilting machine specification:
SPEC\FUNCTION/ WEIGHT WORKING WIDTH CATTIAGE STROKE SEWING SPEED RATED VOLTAGE POWER OVERALL SIZE
HC 94 INCH
3 NEEDLE		 2300㎏ 2450mm 255mm 400-550n/m

380V/220V  50Hz/60Hz

 4kw (L)4350mm
(W)1050mm
(H)1780mm
HC 94 INCH
2 NEEDLE		 2100㎏ 2450mm 250mm 400-550n/m 380V/220V  50Hz/60Hz 4kw (L)4350mm
(W)1050mm
(H)1780mm
HC 64 INCH
3 NEEDLE		 1800㎏ 1700mm 160mm
100mm		 400-600n/m 380V/220V 50Hz/60Hz 3.5kw (L)3270mm
(W)1050mm
(H)1750mm

HC 64 INCH
2 NEEDLE		 1600㎏
 1700mm
160mm
100mm		 400-600n/m
 380V/220V 50Hz/60Hz 3.5kw

(L)3270mm
(W)1050mm
(H)1750mm
　

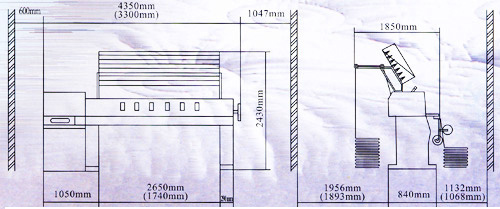

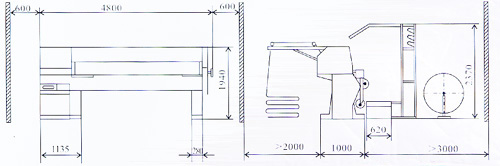

HC-94-3JA model quilting machine installation specifications
HC-64" 94"High speed multi-needle large pattern shuttle quilting machine. (multi-jump quilting)
　
