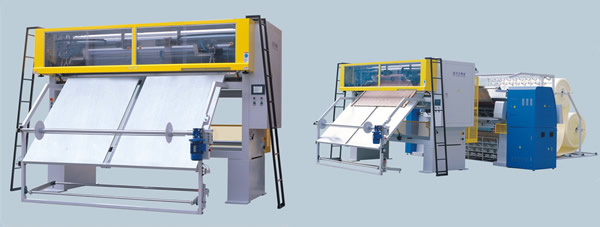

HC-QG-E Computerized panel cutting machine



SPECIAL FUNCTION:

1.Computer controlled panel cutting machine.
2.Designed to work with HC2000 , HC-94-3JE or HC-94-3JA Quilting Machine or on its own .
3.Machine is capable of cutting quilted panels,borders ,trimming sides or material rolling.
4.PLC control and touch screen for easy operation .
5.Encoder,Infrared setting of panel lengths for accurate panel cutting
6.Air Sharpening device to maintain cutting blades ,Air material pressing system and Air material pulling system to press and pull material automatically..
7.Reliable border feed and cutting mechanism.
8.Auto Working Table and width adjustable design for precise length .

9.Stable ,vibration free operation with low noise and high efficiency.

Technical Specification:

Frame size  (L×W×H)	3750×2500×2100mm
Weight	1500kg
Length of board	2000mm
Thickness	3-80 mm
Width	100-2500 mm
Speed	7000 mm/min
Power	3KW
Power supply	380V/50Hz, 220V /60Hz
Air pressure	0.4-0.8 Mpa

Feature Icon:

Rotary Encoder For Length Measurement	Inverter For Rolling System	Computerized Sharpening System	Pneumatic Feed-out Board

Applications:
Mattress panel, pads, bedspreads, bedding, comforters and so on.
